Nitrile Glove Plant
Batch Dipping Process Examination gloves
Description of all items in the machine
Frame of the machine
The frame consists of one part (box girder). It is consisting of a solid construction. The frame has two lifts and two levels. The frame is placed on a steel foundation in the factory, made by the factory according to our drawings (electro, water, air on the right place).
1. Frame for formers
Approximately 42 pieces are placed in the machine. All 42 can slide in the machine and adjusted exactly above all items. All frames can turn 179°. 48 formers in the frame to be pushed out by unit (for beading, stripping, cleaning, printing, etc.)
The largest size XL is used as reference.
2. Acid/rinsing
One part, stainless steel tank. Dipping in acid and rinsing electrically/hydraulically. Exhaust by ventilators by chimney (roof). Rinse tank overflow.
3. Filling station
Empty place in the machine that can be reached easily. Rail can be pushed in by hand.
4. Washing/cleaning
This item is doing all at once.
- brushing cleaning
- spraying
- drying
All with temperature control.
Made as much from stainless steel as possible
The rails are pushed out.
5. Drying
If necessary by thermic oil/electrically by ventilators. Insulated ovens and circulating air.
6. Coagulant dipping
- Stainless steel tank. Stirrers.
- Or overflow by pumps. Dipping automatically adjustable in four steps.
- Waiting time at the bottom, adjustable.
- Temperature adjustment by means of electricity/thermic oil 60-80°C.
- Connection for day tank.
- Temperature control by mechanic temperature control adjustable eventually by PC.
- Finger tips up possible directly after dipping or one station further.
7. Drying
See 6.

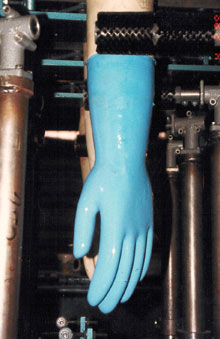

8. Nitrile dip
Stainless steel tank, double walled for cooling if necessary. Stirrers or pump overflow. Sieve. Dipping speed exactly adjustable. Connection to day tank. Revolving directly after leaving nitrile tank or one station further.
9. Drying
See 6.
10. Beading
Rails with formers can be pushed out. Rotating brushes make the beading.
11. Leaching
One big stainless steel tank, adjustable in height. Overflow. Connection for fresh water, water temperature by thermic oil or electric. Mechanical and electronical temperature indicator. Frames are pushed through. Lift directly from leaching tank directly up.
12. Printing
Subject not known to us. We have calculated DM 30.000-40.000.
Can be pushed out. Printing per former.
13. Curing oven
Situated on the second level. Divided in four parts for temperature raise. Insulated. Temperature controlled by PLC on request. Frames can be pushed through by air/hydraulically. Circulating air (chimney). If necessary humidity control system. Water secretion.
14. Leaching
- If necessary again, see leaching under 12.
- One dip.
15. Powdering/detack tank
See coag tank.
16. Drying Oven
See 6.
17. Stripping
Fully automatic.
Secret method by Dutch Dipping
